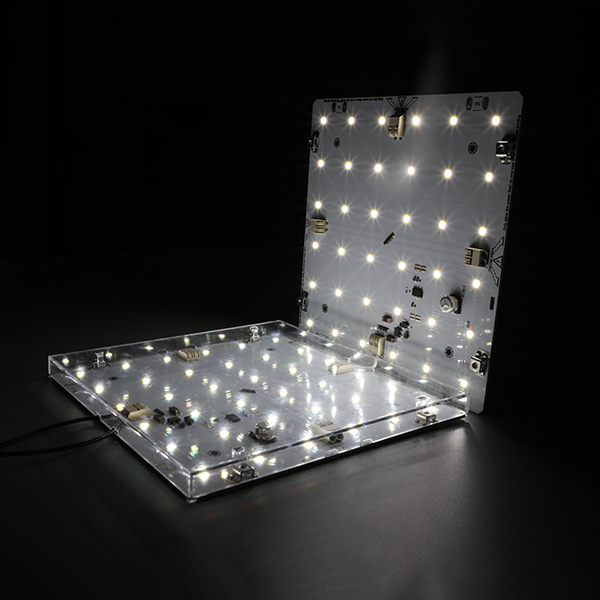

LED Rigid Strip - Advertising Backlit Series - AC Light sheet - 36LED 120VAC SL-912
LED Rigid Strip - Advertising Backlit Series - AC Light sheet - 36LED 120VAC SL-912
- Driverless design with DOB (driver on board) patented technology.
- Small size and sliceable to be different advertising light box and decorative pattern.
- DIY quick plug play operation with welding-free and non-polarity design.
- Class II of safety protection to prevent electric shock with additional protective cover.
- Energy saving, flicker-free, short-start, reliable quality and long lifespan.
Download
Main parameter:
| Part No. : | SL-912 |
|---|---|
| LED Type : | SMD2835 |
| LED QTY : | 36pcs |
| Voltage : | 120VAC |
Power : | 4W |
| Brightness : | 430lm |
| Light Efficiency : | 108lm/W |
| CCT : | 2700/3000/3500/4000/5000/6500K |
| CRI : | Ra≥80/90 |
| SDCM : | 3 step 1 bin |
| Wavelength : | / |
Beam Angle : | 120° |
| Minimum Unit : | / |
Dimension : | L150*W150*H7.4mm [L5.9*W5.9*H0.3in.] |
| IP Rating : | IP20 [Dry] |
PCB type : | FR4 |
Application:
1. Backlit of light box and light ceiling in signage system.
2. Widely usage in residential, retail and hospitality market.
