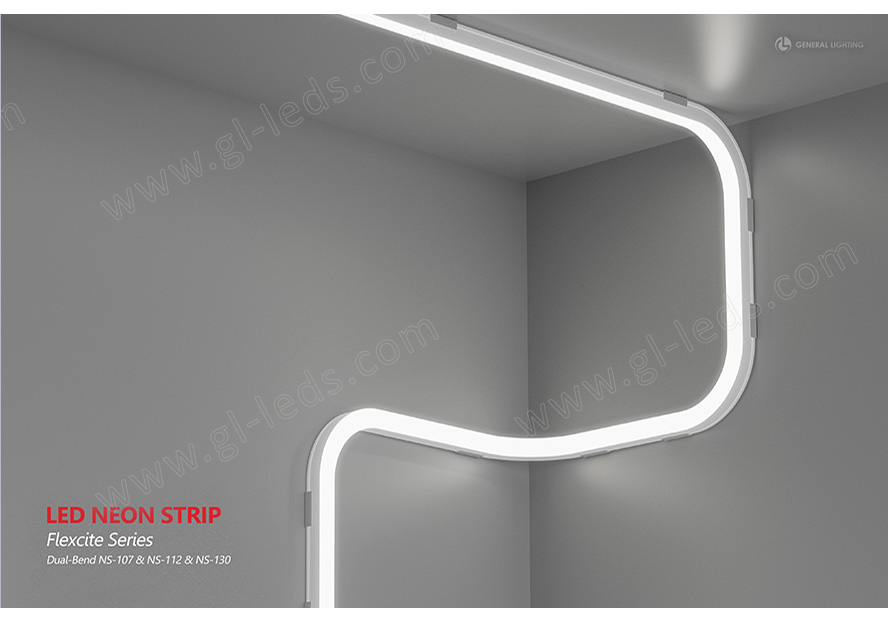

LED Neon Light - FleXCite Series - Dual-Bend NS-130
- Dual-bend performance to fix many plane, curved and complex irregular structures at will.
- Static white, dynamic CCT and RGB modes can be realized in small size jacket.
- On-site free-cutting and assembly for fast and flexible customization operation, with end cap sealed by gluing process.
- Customized length with overall appearance in the same size by die-casting process.
FleXCite Series - Dual-Bend NS-130
Main features:
1. Dual-bend performance to fix many plane, curved and complex irregular structures at will.
2. Static white, dynamic CCT and RGB modes can be realized in small size jacket.
3. On-site free-cutting and assembly for fast and flexible customization operation, with end cap sealed by gluing process.
4. Customized length with overall appearance in the same size by die-casting process.
Main parameter:
| Part No. | NS-130 |
|---|---|
| LED Type | W/RGB: SMD2835, CCT/D2W: SMD2216 |
| LED QTY | W/RGB: 120LED/M [36LED/ft.], CCT/D2W: 240LED/M [73LED/ft.] |
| Voltage | 24VDC |
Power | 14W/M [4.27W/ft.] / 14W/M [4.27W/ft.] / 10W/M [3.05W/ft.] / 14W/M [4.27W/ft.] / |
| PF | \ |
| Color | W / CCT / D2W / RGB |
| Brightness | W: 840lm/M [260lm/ft.] / CCT: 670lm/M [204lm/ft.] D2W: 390lm/M [120lm/ft.] / RGB: 290lm/M [90lm/ft.] |
| Light Efficacy | \ |
| CCT | W: 2700/3000/3500/4000/5000/6000K CCT: 2700-6000K, D2W: 1800-3000K |
| CRI: | W: ≥80/90, CCT/D2W: ≥90 |
SDCM: | W/CCT/D2W: 3 step 1 bin |
| Wavelength | / |
Beam Angle | 120° |
| Minimum Unit | W/CCT: Free-cutting to be any length, D2W/RGB: 50mm [1.97in.] |
Dimension | L5000*W16*H16mm [L197*W0.63*H0.63in.] |
IP Rating | IP67 [Wet] |
Application:
1. Decoration for showcase, advertising, displayer board.
2. Lighting for hotel, garden, bridge.
3. Corridor, ceiling, stair, path way.
4. Signage, architecture lighting.
Installation:
Accessories:
