LED Linear Luminaire - Sierra Series - Retail Lighting - GLRET-10056A
- Luxury spot track light with appearance color in powder coated black and powder coated white.

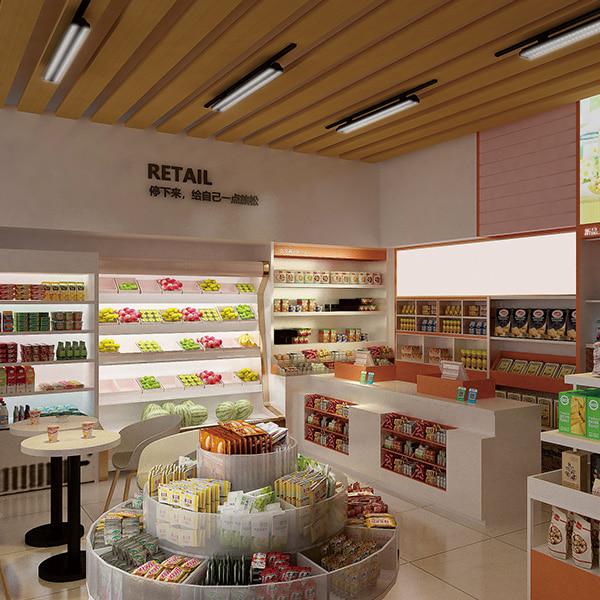

- Ideal for installation above the goods shelves in a row, or above the corridor between two rows of goods shelves.
- Illumination direction is filed adjustable with wide angle in 90°unidirectionally, according to the location of goods shelf.
- AC230V/AC120V direct input, class I degree of safety protection with grounding operation.
- Anti-glare design with UGR<16 for grille cover and prismatic cover.
- Using high light transmission PMMA lens with beam angle in 15°, 30°and 45° as directional lighting.
- Adopting powerful SMD3030 LED, and getting light efficiency up to 100lm/W for energy saving.
- Adopting CE/UL certified built-in power supply in Class I, with flicker-free and high power factor.
- Customized color is available according to the type of food, such as red meat, flesh meat, pastry, cheese/pasta, fruit/vegetable, green vegetable and seafood.
- Flexible installation method by track slot, bridge or pole.
- 50,000h LED lifespan, 5 years warranty, CE and RoHS compliant.
Main parameter:
| Part No. | GLRET-10056A |
|---|---|
| Dimension | L1084*W100*H56mm [L43*W1.3*H3.2in.] |
| Cover Materia | PC |
Cover Type | Grating |
Appearance Material & Color | Powder Coated Black / Powder Coated White / Oxidized Silver |
| Installation Method | Track / Pole / Bridge |
| Operating Voltage | 230VAC / 120VAC |
| PF | >0.9 |
| Power | 50W |
| CCT | 2700/3000/3500/4000/5000/6500K |
Luminous Flux @4000K&CRI80 | 5000lm (Power Coated Black Appearance) |
Light Efficacy @4000K&CRI80 | 100lm/W (Power Coated Black Appearance) |
Luminous Flux @4000K&CRI90 | 4250lm (Power Coated Black Appearance) |
Light Efficacy @4000K&CRI90 | 85lm/W (Power Coated Black Appearance) |
| Beam Angle | 15° / 30° / 45° |
Energy Efficiency Class of (EU) 2019/2020for Inner LED StripSource | D(150lm/W) @ 4000K & CRI80 E(127lm/W) @ 4000K & CRI90 |
