LED Linear Light - Link Flow Series - SL-400 Visible Disinfection Light
- Visible “UV” light in purple color, with typical peak wavelength of 405nm, safe and reliable for human, material and environment, can be combined with normal white light (in one control system or in separated control system), to get both functions of general illumination and bacteria disinfection without special precautions.
- Support rigid split joint or soft jumper linking, up to 5 meters [16.4ft] run length in seamless connection without brightness difference.
- Simple and quick assembly DIY concept, patented design.
- Surface or flush mounting by magnet,magnet+metal sheet or bracket.
- Multiple lengths for easy configuration.
- Dimmable available using standard in-line touch dimmer, or other PWM types of dimmers.
- Optional sensor in PIR sensor and hand scanning sensor.
- 3 years warranty, CE, UL, RoHS approval.
Link Flow Series - SL-400 Visible Disinfection Light
Main features:
1. Visible “UV” light in purple color, with typical peak wavelength of 405nm, safe and reliable for human, material and environment, can be combined with normal white light (in one control system or in separated control system), to get both functions of general illumination and bacteria disinfection without special precautions.
2. Support rigid split joint or soft jumper linking, up to 5 meters [16.4ft] run length in seamless connection without brightness difference.
3. Simple and quick assembly DIY concept, patented design.
4. Surface or flush mounting by magnet,magnet+metal sheet or bracket.
5. Multiple lengths for easy configuration.

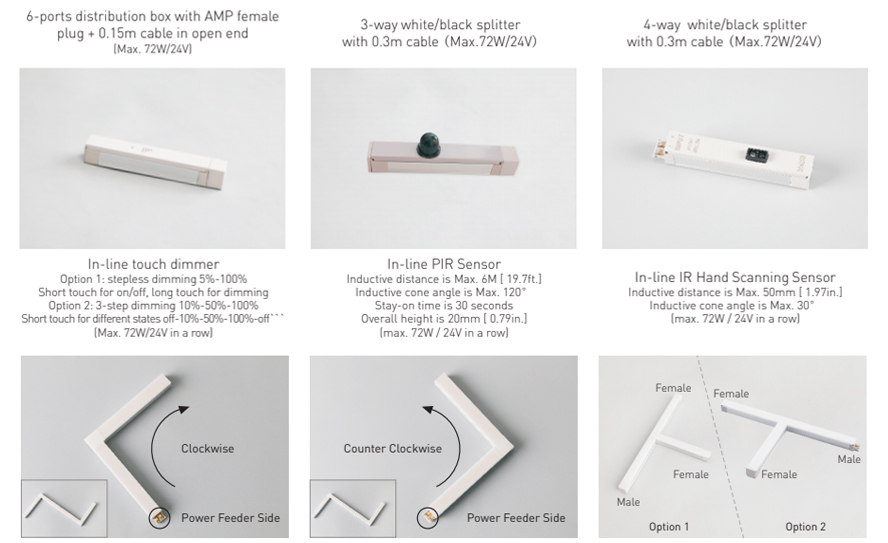

6. Dimmable available using standard in-line touch dimmer, or other PWM types of dimmers.
7. Optional sensor in PIR sensor and hand scanning sensor.
8. 3 years warranty, CE, UL, RoHS approval.
Main parameter:
| Part No. | SL-400-0100 / SL-400-0200 / SL-400-0300 /SL-400-0600 / SL-400-0900 / SL-400-1200 / SL-400-1500 |
|---|---|
| LED Type | SMD2835 |
| Voltage | 24VDC |
Power | (1.3/2.7/4/8/12/16/20)W |
| PF | / |
| Color | Purple |
Radiation Flux | (0.28~0.43)W/M / (0.55-0.83)W/M / (0.83~1.24)W/M / (1.8~2.7)W/M / (2.7~4.05)W/M / (3.6~5.4)W/M / (4.5-6.75)W/M |
| Light Efficacy | / |
| CCT | / |
| CRI | / |
SDCM | / |
| Wavelength | 405nm |
Beam Angle | 120° |
| Minimum Unit | / |
Dimension | L(100/200/300/580/880/1180/1480)*W11*H11.8mm [L(3.94/7.87/11.8/22.8/34.6/46.5/58.3)*W0.43*H0.46in.] |
IP Rating | IP20 [Dry] |
Application:
1. Interior decoration.
2. Show case & stock shelves.
3. Retail & Supermarket.
4. Corridor & ladder.
Installation:
1. Flush or surface mounting by magnet, for metal surface.
2. Flush or surface mounting by magnet+metal sheet, for nonmetal surface.
3. Flush or surface mounting by bracket, for nonmetal surface.

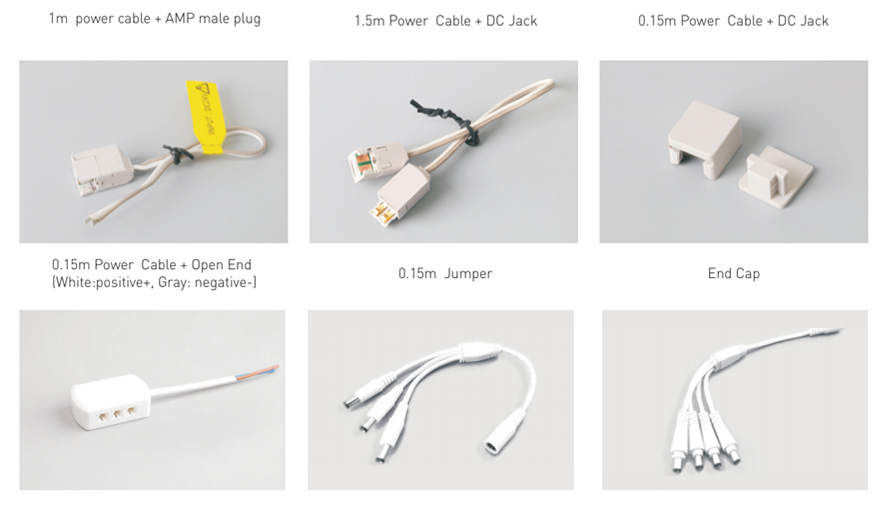

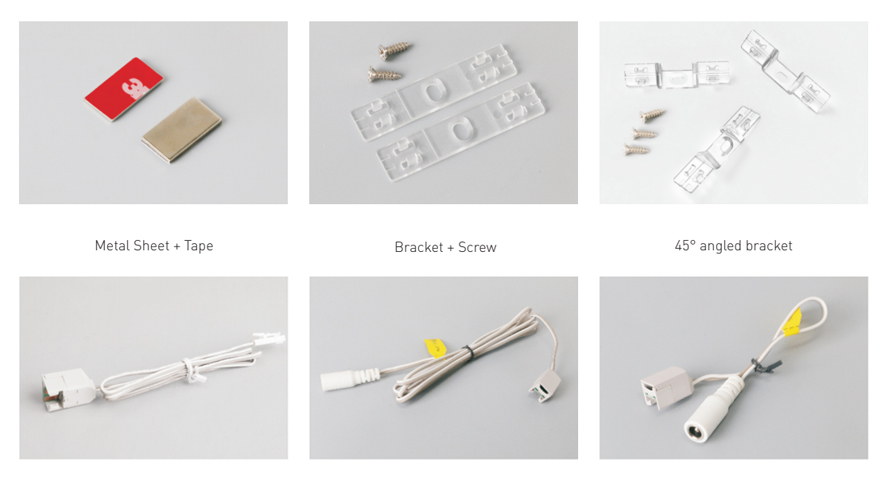

Accessory:
