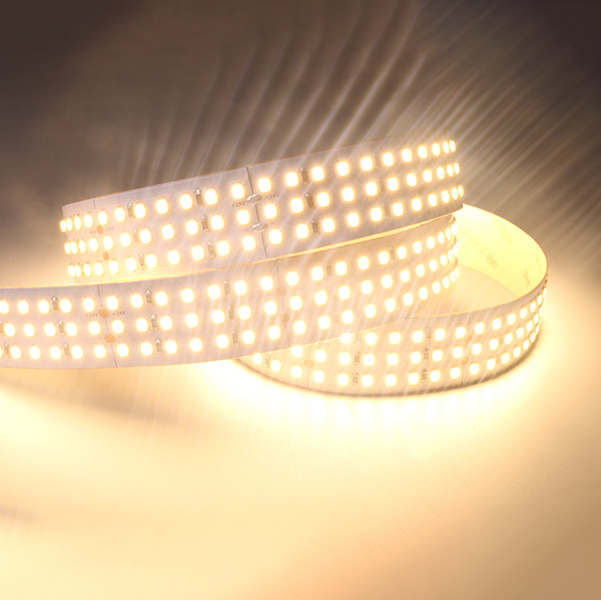

LED Flexible Strip - High-Efficacy Premium Series - White 2835 480LED 195lm/W 24V GL-24-L493
LED Flexible Strip - High-Efficacy Premium Series - White 2835 480LED 195lm/W 24V GL-24-L493
1. Both high efficacy and high CRI performance.
2. The brightness of CRI90 is the same as the normal CRI80 product.
3. Energy Efficiency of new ErP (EU)2019/2020 compliant in level C with 8-LED cuttable design.
4. Relatively low heat generation and low power consumption base on high efficiency design.
Download
| Part No. | GL-24-L493 [GL-N2835XX-24-CV-480-L493] |
|---|---|
| LED Type | SMD2835 |
| LED QTY | 480LED/M [146LED/ft.] |
| Voltage | 24VDC |
Power | 43.2W/M [13.2W/ft.] |
| PF | / |
| Color | White |
| Brightness | 8420lm/M [2570lm/ft.]@CRI80, 7990lm/M [2440lm/ft.]@CRI90 7560lm/M [2300lm/ft.]@CRI95 |
| Light Efficacy | 195lm/W@CRI80, 185lm/W@CRI90 175lm/W@CRI95 |
| CCT | 2700K-6500K |
| CRI | Ra≥80/90/95 |
SDCM | 3 step 1 bin |
| Wavelength | / |
Beam Angle | 120° |
| Minimum Unit | 50mm [1.97in.] |
Dimension | L5000*W25*H1mm [L197*W1*H0.04in.] |
IP Rating | IP20/IP54/IP65/IP67/IP68/IP54 Plus/IP67 Plus/IP67 Plus Thin [Dry/Damp/Wet] |
