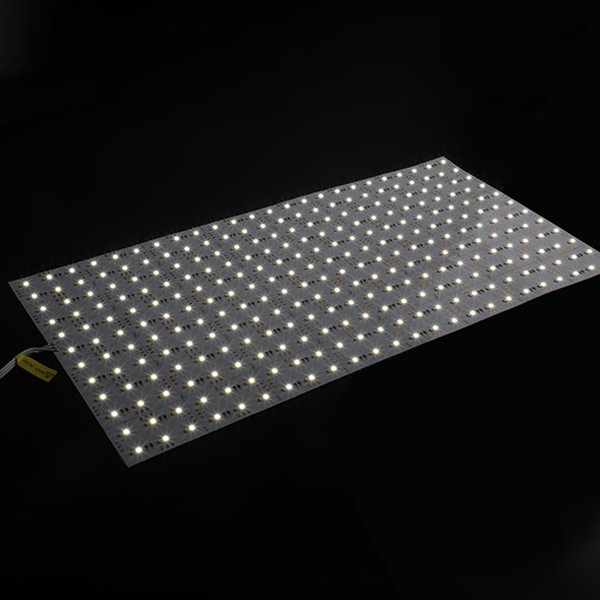

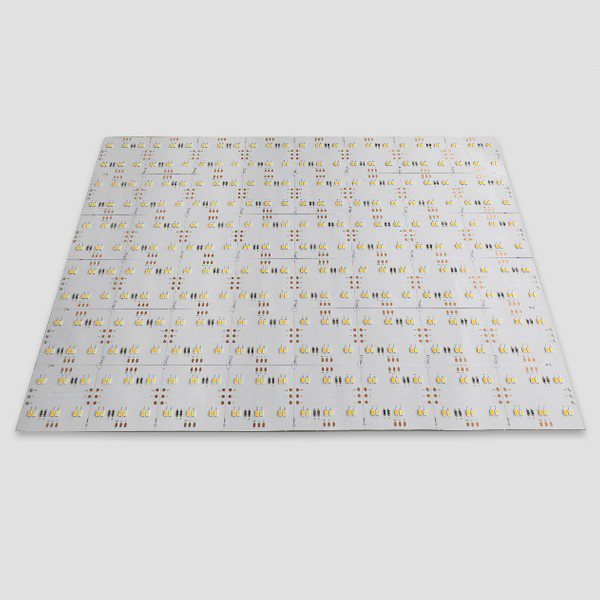

LED Flexible Strip - Full-Spectrum Series - Light Sheet CCT 2835 576LED 24V GL-24-FG85
1. Plus Series using top quality material such as Epistar/San’an chip, Intermatix phosphor powder, ShinEtsu & Dow Corning glue, Heraeus 99.99% pure golden wire, pure copper & fresh plastic stand etc., as standard configuration.
2. Excellent color restoration capability by adopting full-spectrum white LED, with typical parameters in Ra(avg. R1~R8)=97, Ra'(avg. R1~R15)=95, R9≥90, Rf(Fidelity Index)=95, Rg(Relative Gamut Index)=100 and TLCI(Television Lighting Consistency Index)=97.
3. CCT-tunable with the design of two LEDs mounted closely, not only can get a perfect color-mixing performance, but also flexible to make various of LED combination with advanced parameters.
4. Support flexible cutting (by 6 LED) and on-site board-to-board/board-to-power split joint (by on-board XH female connector or cable soldering) to be different shapes along with the solid line.
5. The perfect solution for the curvy and space-sensitive backlit projects requiring the thinnest of lighting solutions.
Main parameter:
| Part No. | GL-24-FG85 [GL-N2835XX-24-CV-200-FG85] |
|---|---|
| LED Type | SMD2835 |
| LED QTY | 576LED/sheet |
| Voltage | 24VDC |
Power | 90W/sheet |
| PF | / |
| Color | White |
| Brightness | 7275lm/sheet |
| Light Efficacy | 81lm/W |
| CCT | 2700~6500K CCT-Tunable |
| CRI | Ra(avg. R1~R8)=97, Ra(avg. R1~R8)=95, R9≥90, Rf(Fidelity Index)=95, Rg(Relative Gamut Index)=100, TLCI(Television Lighting Consistency Index)=97 |
SDCM | 3 step 1 bin |
| Wavelength | / |
Beam Angle | 120° |
| Minimum Unit | L60*W40mm [L2.4*W1.6in.] |
Dimension | L480*W240*H1mm [L19*W9.5*H0.04in.] |
IP Rating | IP20/IP54 Thin [Dry/Damp] |
Application:
Indirect lighting in residential, retail and hospitality industry, such as cabinet, shelf, cove, billboard, showcase, signage, corridor, stair etc.
