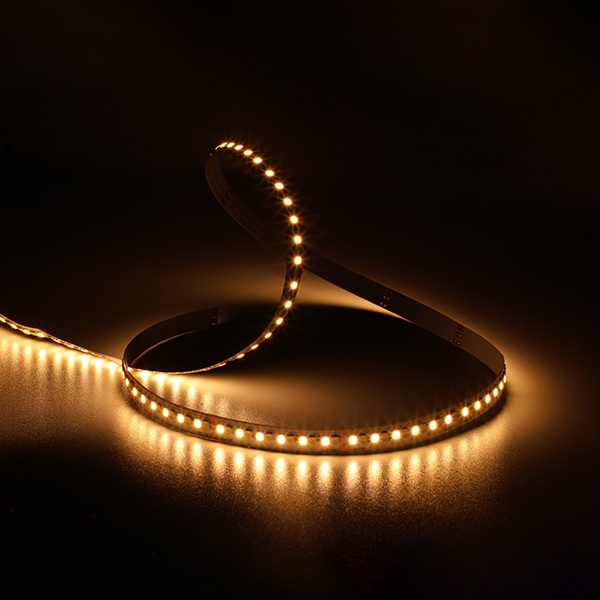

LED Flexible Strip - Full-Spectrum Series - CCT 2835 240LED 24V GL-24-LN28
1. Plus Series using top quality material such as Epistar/San’an chip, Intermatix phosphor powder, ShinEtsu & Dow Corning glue, Heraeus 99.99% pure golden wire, pure copper & fresh plastic stand etc., as standard configuration.
2. Excellent color restoration capability by adopting full-spectrum white LED, with typical parameters in Ra(avg. R1~R8)=97, Ra'(avg. R1~R15)=95, R9≥90, Rf(Fidelity Index)=95, Rg(Relative Gamut Index)=100 and TLCI(Television Lighting Consistency Index)=97.
3. CCT-tunable with the design of two LEDs mounted closely, not only can get a perfect color-mixing performance, but also flexible to make various of LED combination with advanced parameters.
Main parameter:
| Part No. | GL-24-LN28 [GL-X2835XX-24-CV-240-LN28] |
|---|---|
| LED Type | SMD2835 |
| LED QTY | 240LED/M [73LED/ft.] |
| Voltage | 24VDC |
Power | 24W/M [7.32W/ft.] |
| PF | / |
| Color | White |
| Brightness | 1980lm/M [300lm/ft.] |
| Light Efficacy | 83lm/W |
| CCT | 2700K~6500K (CCT-Tunable) |
| CRI | Ra(avg. R1~R8)=97, Ra(avg. R1~R8)=95, R9≥90, Rf(Fidelity Index)=95, Rg(Relative Gamut Index)=100, TLCI(Television Lighting Consistency Index)=97 |
SDCM | 3 step 1 bin |
| Wavelength | / |
Beam Angle | 120° |
| Minimum Unit | L50mm [L1.97in.] |
Dimension | L5000*W10*H1mm [L197*W0.4*H0.04in.] |
IP Rating | IP20/IP54 Plus [Dry/Damp] |
Application:
Indirect lighting in residential, retail and hospitality industry, such as cabinet, shelf, cove, billboard, showcase, signage, corridor, stair etc.
