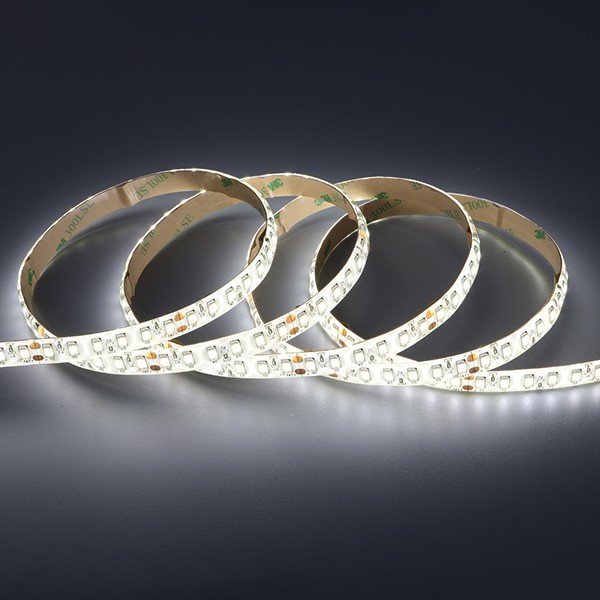

LED Flexible Strip - Full-Spectrum Series - 2835 120LED 24V GL-24-L745
1. Plus Series using top quality material, such as Epistar chip, Intermatix phosphor powder, ShinEtsu & Dow Corning glue, Heraeus 99.99% pure golden wire, purecopper & fresh stand etc.
2. Full-spectrum light, excellent color rendition ability with typical optical parameters of Ra (avg R1~R8)=97, Ra’(avg R1~R15)=95, R9≥90, Rf (Fidelity Index)=95, Rg (Relative Gamut Index)=100, specific for high chromaticity application.
3. Decorating backlight and indirect lighting for showcase, shelf, cabinet, billboard, signage, hotel, garden, bridge, corridor, ceiling, stair, floor, cove, theatre, lift etc.
Main parameter:
| Part No. | GL-24-L745 [GL-X2835XX-24-CV-120-L745] |
|---|---|
| LED Type | SMD2835 |
| LED QTY | 120LED/M [36LED/ft.] |
| Voltage | 24VDC |
Power | 14W/M [4.27W/ft.] |
| PF | / |
| Color | White |
| Brightness | 1160lm/M [350lm/ft.] |
| Light Efficacy | 83lm/W |
| CCT | 2400&2700&3000&3500&4000&5000&6500K |
| CRI | Ra(avg. R1~R8)=97, Ra(avg. R1~R8)=95, R9≥90, Rf(Fidelity Index)=95, Rg(Relative Gamut Index)=100, TLCI(Television Lighting Consistency Index)=97 |
SDCM | 3 step 1 bin |
| Wavelength | / |
Beam Angle | 120° |
| Minimum Unit | L50mm [L1.97in.] |
Dimension | L5000*W10*H1mm [L197*W0.4*H0.04in.] |
IP Rating | IP20/IP65/IP54 Plus/IP67 Thin/IP67 Plus [Dry/Damp/Wet] |
Application:
Indirect lighting in residential, retail and hospitality industry, such as cabinet, shelf, cove, billboard, showcase, signage, corridor, stair etc.
