High Voltage LED Strip - AC Glide Series - 811XD-0018-002A 120VAC Colorful Dimmable
- Simple and quick assembly procedure, no need the operation of peeling PVC tube, locking screw and soldering.
- Patent driverless design, with on-board constant current IC driver and rectifier, direct AC power supply without external driver, supports hot plug operation.
AC Glide Series - 811XD-0018-002A Colorful
Main features:
1. Simple and quick assembly procedure, no need the operation of peeling PVC tube, locking screw and soldering.
2. Patent driverless design, with on-board constant current IC driver and rectifier, direct AC power supply without external driver, supports hot plug operation.
Main parameter:
| Part No. | 811XD-0018-002A |
|---|---|
| LED Type | SMD2835 |
| LED QTY | 80LED/M 24LED/ft.] |
| Voltage | 120VAC |
Power | 9W/M [2.7W/ft.] |
| PF | >0.8 |
| Color | Colorful |
| Brightness | 134lm/M [41lm/ft.]@Red, 797lm/M [243lm/ft.]@Green, 118lm/M [36lm/ft.]@Blue, 502lm/M [153lm/ft.]@Amber, 413lm/M [126lm/ft.]@Pink |
| Light Efficacy | / |
| CCT | / |
| CRI | / |
SDCM | / |
| Wavelength | / |
Beam Angle | 120° |
| Minimum Unit | 200mm [8in.] |
Dimension | L50000*W16.5*H7mm [L1969*W0.65*H0.28in.] |
IP Rating | IP40/IP65 [Dry/Wet] |

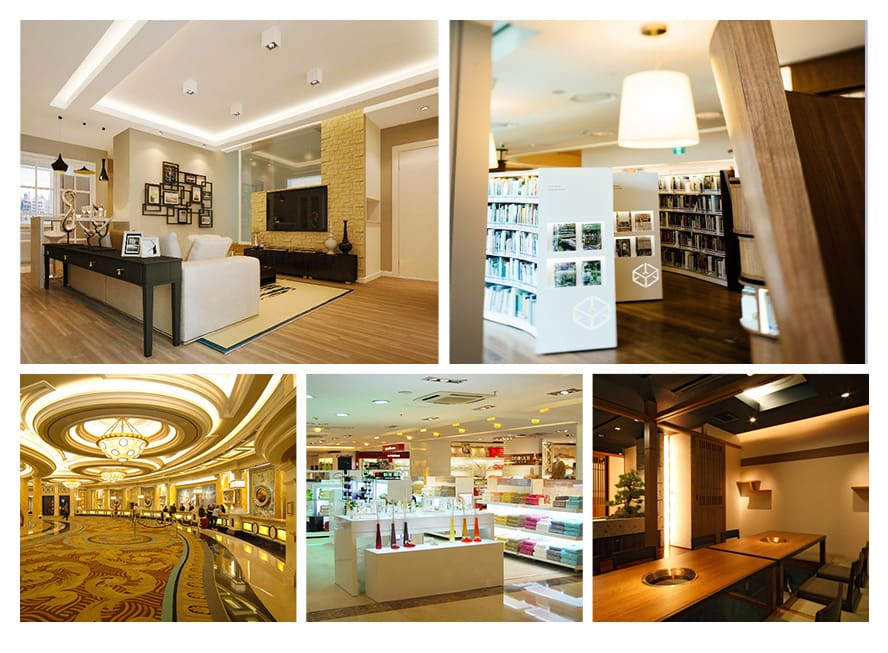

Application:
1. Indoor usage for outline and cove lighting.
2. Ourdoor usage for architecture and landscape lighting.
