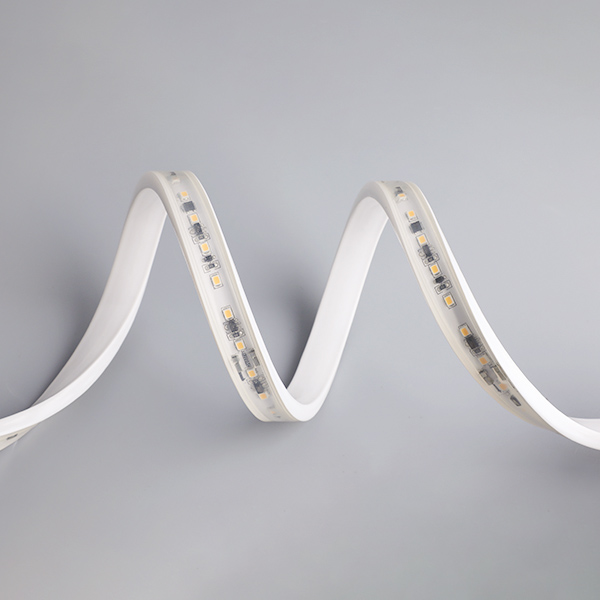

High Voltage LED Strip - AC Glide Series - 811XD-0012-001A 120VAC Dimmable
- Simple and quick assembly procedure, no need the operation of peeling PVC tube, locking screw and soldering.
- Patent driverless design, with on-board constant current IC driver and rectifier, direct AC power supply without external driver, supports hot plug operation.
AC Glide Series - 811XD-0012-001A Dimmable
Main features:
1. Simple and quick assembly procedure, no need the operation of peeling PVC tube, locking screw and soldering.
2. Patent driverless design, with on-board constant current IC driver and rectifier, direct AC power supply without external driver, supports hot plug operation.
Main parameter:
| Part No. | 811XD-0012-001A Dimmable |
|---|---|
| LED Type | SMD2835 |
| LED QTY | 80LED/M [24LED/ft.] |
| Voltage | 120VAC |
Power | 12W/M[3.7W/ft.] |
| PF | >0.97 |
| Color | White |
| Brightness | 1100-1350lm/M [335-410lm/ft.]@CRI80&4000K 950-1150lm/M [290-350lm/ft.]@CRI80&4000K |
| Light Efficacy | 92-113lm/W@CRI80&4000K, 80-96lm/W@CRI80&4000K |
| CCT | 2700/3000/3500/4000/5000/6500K |
| CRI | Ra≥80/90 |
SDCM | 3 step 1 Bin |
| Wavelength | / |
Beam Angle | 120° |
| Minimum Unit | 100mm [4in.] |
Dimension | L50000*W16.5*H7mm [L1969*W0.65*H0.28in.] |
IP Rating | IP40/IP65 [Dry/Wet] |
Application:
1. Indoor usage for outline and cove lighting.
2. Ourdoor usage for architecture and landscape lighting.
